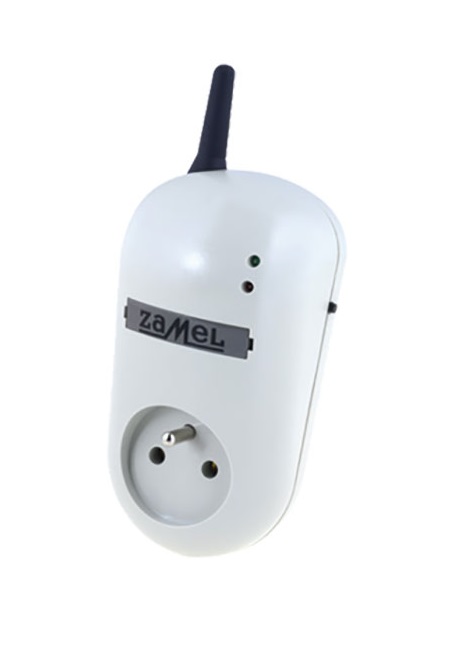

Remote-controlled socket, RF, Exta Free 230V
SKU: BRT-565832$ 95.66
- Description Specifications Files 2 The remote-controlled disocket RWG-01 provides connection of any electric 230 receiver up to 4000 VA and its wireless control using any EXTA FREE system transmitters. Installation of the device does not require tools or changes in the existing wiring - the device is installed directly into the 230 V socket.Collaboration with EXTA FREE Wireless Control System transmitters5 modes of operation: switching on, off, mode monostable, bistable, time (delay off),low power consumption, possibility of constant operationcontrol of lighting, heating, other applicationslarge range (up to 300 m),possibility of increasing range of action by using a repeater RTN-01.simple assembly directly in a 230 V socket ~optical signaling of radio station transmission and relay status RWG-01Input rated voltage: 230 V ACInput voltage tolerance: -15 ÷ 10 %Nominal frequency: 50 / 60 HzNominal power consumption: 0,29 WOptic signalling of power supply: LED green diodeNumber of operation modes: 5Number of channels: 1Transmission: radio 868,32 MHzCoding way: unidirectionalCoding: addressing transmissionMaximum number of transmitters: 32Range: up to 300 m in the open areaTime adjustment: 1 sec. ÷ 18 hours (every second)Optic signalling of device operation: LED red diodeRelay contact parameters: 1NO 16A / 250V~ AC1 4000 VAAmbient temperature range: -10 ÷ 55 oCOperating position: freeCasing mounting: 230 V~ socketCasing protection degree: IP20 (EN 60529)Protection level: IIOvervoltage category: IIPollution degree: 2Surge voltage: 1 kV (EN 61000-4-5)Dimensions: 160 x 66 x 90 mmWeight: 0,160 kgReference standard: EN 60669, EN 60950, EN 61000The symbol means selectivecollecting of electrical and electronicequipment.It is forbidden to put the usedequipment together with other waste.AntennaOptic signalling of transmitters’switching onProgramming push-buttonReceiver’s socketPower supply plugOptic signalling of input voltageAPPLICATIONRemote control socket RWG-01 operates as a receiver of 8-channel remote control P-256/8 and of2–channel button radio transmitter RNK-02 (light sources control - switch on / switch off). Presentedtransmitters can also control operation of 1-channel radio receiver ROP-01 or radio lighting switch RWG-01 juhend en763.34KBDownload RWG-01 kasutusjuhend765.5KBDownload
