RGB led controller 10 ÷ 14 V DC, Exta Free
SKU: BRT-565832$ 95.66

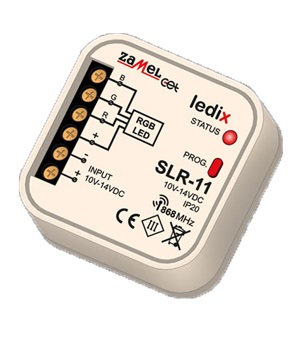

- Description Specifications Files 1 SLR-11 controller is designed to control LED RGB diodes in the circuit with common “ ” potential (RGB LEDIX series standard fittings, RGB strips and modules).The control is carried out wirelessly on 868 MHz frequency.The device has a default setting of 5 LED diode control programmes, and the user can select one out of 10 LED diode colours.SLR-11 in cooperation with P-260 remote control enables to change the lighting colour in a fluent way (RAINBOW).Colour control is done by means of PWM modulation with 9-bit resolution.Its small casing dimensions allow for an easy mounting in a Ø60 junction box. Power supply: 10 ÷ 14 V DCPower consumption: 0,22 WNumber of channels: 3Maximum channel loading: 2,5 AControl signal: PWMProgrammes:Colour selectionBrightening/DimmingFloating change of coloursStrobe change of colours - only for P-260Rainbow - only for P-260Control: Selected EXTA FREE transmitters, P260Colour resolution: 9-bitColours: 10 defined, Floating choice for P-260Steps: 10 (up to 50 min)Transmission f: = 868,32 MHzTransmission way: Simplex (one-way)Coding: YesMaximum number of transmitters: 32Range: Up to 230 m in the open areaSection of connecting cables: Up to 2,5mm2Ambient temperature range: -10° ÷ 55 °CProtection degree: IP20Overvoltage category: IIIDimensions [mm]: 47,5 x 47,5 x 20Weight [g]: 27 Manual SLR-11 GB430.82KBDownload
