SONOFF Dongle Max Zigbee/Thread PoE Dongle
SKU: BRT-565832$ 98.96

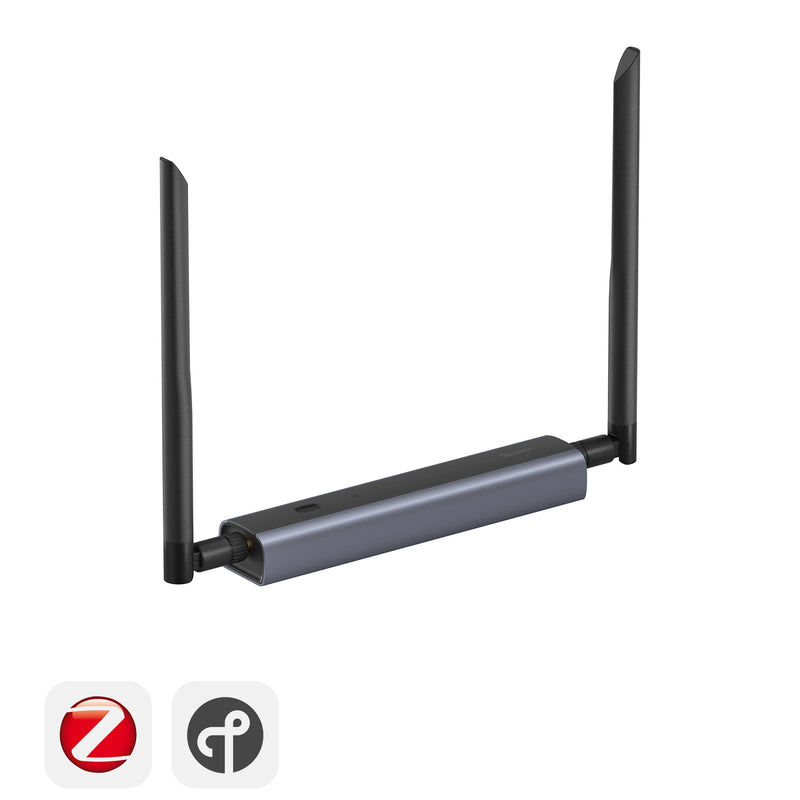

- Description Specifications Files 1 The SONOFF Dongle Max (SKU: SF-DONGLE-M) is a high-performance Zigbee/Thread gateway built on the EFR32MG24 and ESP32D0WDR2 chipsets.It is designed to integrate Zigbee devices seamlessly with open-source smart home platforms.Key Features - Supports Zigbee 3.0 Coordinator, Router, and Thread RCP operational modes.- Flexible connection options: Ethernet (RJ45), Wi-Fi, or USB Type-C.- Power over Ethernet (PoE) capability allows for optimal placement and power.- Mode switching and configuration are managed via a local web console.- Coverage is extended by two adjustable external 5 dBi antennas.- Supports advanced networking features including Webhooks, MQTT, and VPN.Applications This device serves as a professional solution for building scalable smart home systems.It is specifically optimized for integration with open platforms such as Home Assistant and Zigbee2MQTT. Antennas: Two adjustable 5 dBi (one for Zigbee/Thread, one for Wi-Fi)Certification: CE/FCC/RoHSChipset: EFR32MG24 (IEEE 802.15.4 radio) ESP32D0WDR2Housing: Aluminum PC/ABSInterfaces: USB Type-C; RJ45 Ethernet (PoE)Management: Local web consoleModel: Dongle-M (Dongle Max)Power: 5 V⎓1 A (USB-C) or 48 V⎓0.25 A (PoE)Protocols: Zigbee 3.0, Thread (RCP), Wi-Fi (IEEE 802.11 b/g/n 2.4 GHz)Roles: Zigbee 3.0 coordinator/router; Thread RCP (switchable via web UI)Working Temperature: −10 °C to 60 °C SF-DONGLE-M Quick Guide EN3.89MBDownload
