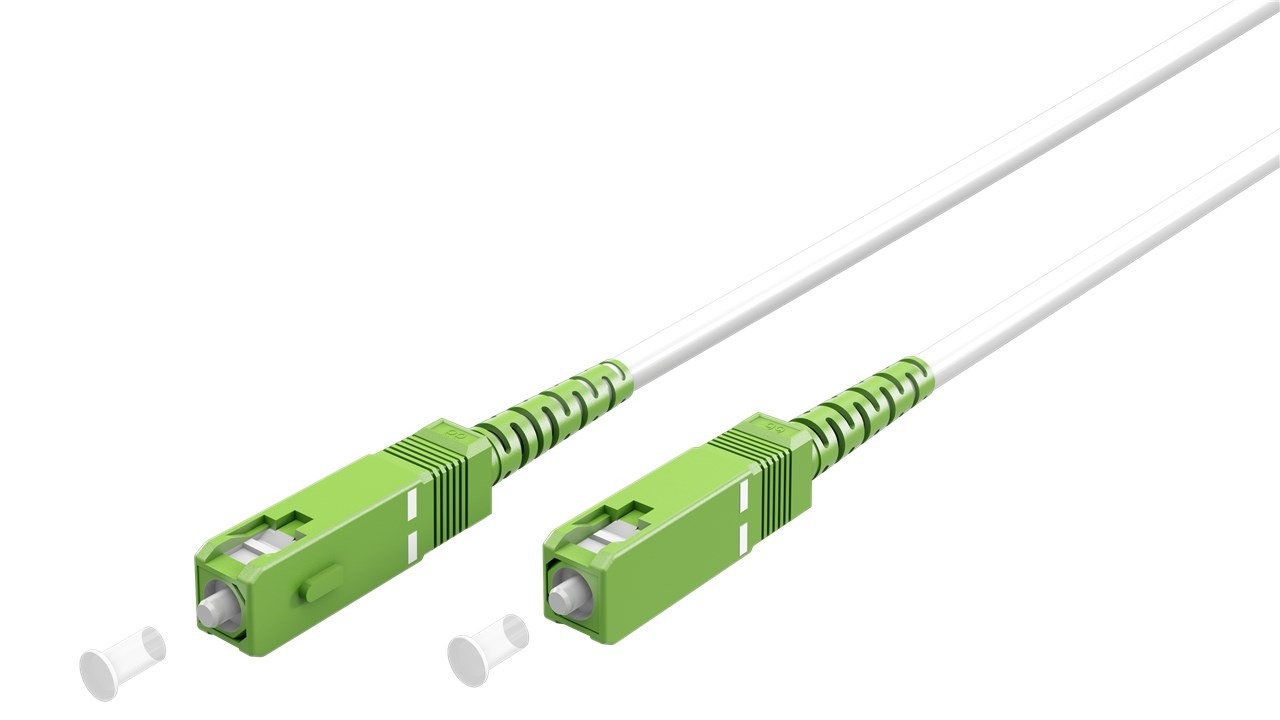

Optical cable single SC/APC-SC/APC, simplex 10m, white
SKU: BRT-565832$ 95.19
- Description Specifications SC-APC (8°) connector SC-APC (8°) connector, halogen-free cable jacket (LSZH), fiber optic cable (LWL)The patch cable is suitable for residential and industrial applications, including Fiber to the Home (FTTH).Fiber optics optimized for bending enable space-saving installation without increasing attenuation and thus without the risk of interference.Single mode fiber optic cable designed for connection types such as FTTH, FTTB, FTTx and for home, office, data center, etc. use.As a patch cord, it forms the connection between the house transfer point (HÜP) and the fiber optic modem (ONT) indoors.Up to 100 Gbit/s fiber optic cable is bend-optimized and space-saving with a minimum bend radius of 30 mm (static).LSZH Compliant: The cable sheath is halogen-free and flame retardant according to IEC 60754-2, IEC 60332-1 and IEC 61034.The strain relief reinforced with aramid thread ensures special stability.Equipped with dust protection caps, connector: simplex, fiber type: OS2, SM single-mode 9/125µm according to ITU T G.657.Individual test protocol with return loss (return loss) and insertion loss (insertion loss) measurements. Connection type: SC-APC (8°) connectorConnector 2, type: SC-APC (8°) maleAnti-pin protection: yesCeramic case: cableFiber optic core diameter: 9 µmFiber optic sheath diameter: 125 µmWavelength: 1310 nmCable fiber type: glass fiber G657.A2 Single Mode (OS2)Color: WhiteCable type: Simplex cableCable jacket, material: LSZHCable sheath diameter (approx): 3mm: 30 mmLSZH Compliant: YesCable length: 10mThe color is: whiteOperating temperature from: -40 °COperating temperature up to: 85 °C
