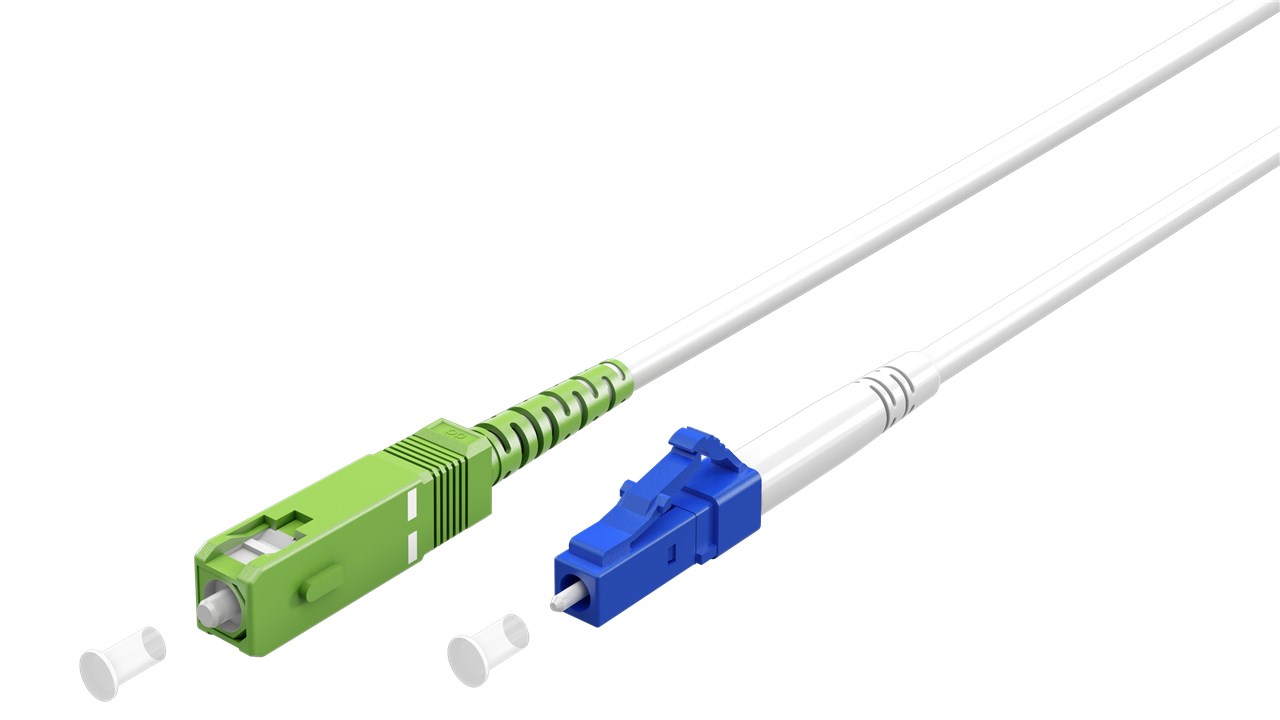

Fibre-optic Cable (FTTH), Singlemode (OS2) White,(Simplex)
SKU: BRT-565832$ 93.48
- Description Specifications Files 1 LC-UPC male, halogen-free cable sheath (LSZH) mono-mode fibre optic cable designed for connection types such as FTTH, FTTB, FTTx, for use at home, in the office, in data centres etc. the patch cord forms the connection between the house transfer point and the Optical Network Terminal (ONT) indoors optical fibre cable for up to 100 Gbit/s that is bend-optimised and space-saving with a minimum bending radius of 30 mm (static) LSZH-compliant: cable sheath is halogen-free and flame-retardant according to IEC 60754 2, IEC 60332 1 and IEC 61034 strain relief reinforced with aramid yarn provides extra stability equipped with dust protection caps, connector: Simplex, fibre type: OS2, SM singlemode 9/125µm according to ITU-T G.657.A2 individual test protocol with measurement of return loss and insertion loss The patch cable is suitable for private and industrial applications, including fibre to the home (FTTH), and is compatible with the FTTH options of a wide range of telecom providers. Thanks to an optimised bend radius of the fibre optic cable, space-saving installation is possible without increasing attenuation and risking interference. Connection, type: SC-APC (8°) male Connection 2, type: LC-UPC male Kink protection: yes Cable fiber type: Glass Fibre G.657.A2 Cable type: simplex cable Material cable sheath: LSZH LSZH compliant: yes Color version: white Color: white Consumption Unit: 1 pc. in polybag Packaging type: Bulk Optical fiber core diameter: 9 µ Optical fiber sheath diameter: 125 µ Contacting: Ceramic Ferrule Wavelength: 1310 nm Specification: Singlemode (OS2) White Cable length: 15 m : 30 mm Cable sheath diameter (approx.): 3 mm Operating temperature from: -40 °C Operating temperature up to: 85 °C SCIP no.: 92a87f8c-54c0-4f1c-b258-6abbb47f6395 chemical substance: Pb CAS no.: 7439-92-1 59613_Produkt-Datenblatt#Product-Data-Sheet.pdfDownload
